Rack & Pinion Actuators

  • Home
  • Rack & Pinion Actuators

Features

  • Robust design, corrosion resistant body parts, Heavy duty & high strength materials for pinion shaft and fasteners.
  • Torque ranges from 4.9 Nm to 3257 Nm for double acting and 6.6 Nm to 2078 Nm for Single acting actuators @ 4 Bar.
  • Stroke 0° to 90° adjustable up to ±5°
  • Enclosure IP67/IP68.
  • Mounting standards Conforming to ISO 5211, NAMUR and VDE/VDI 3845
  • Standard square/star actuator bottom mounting or as per customer requirements.

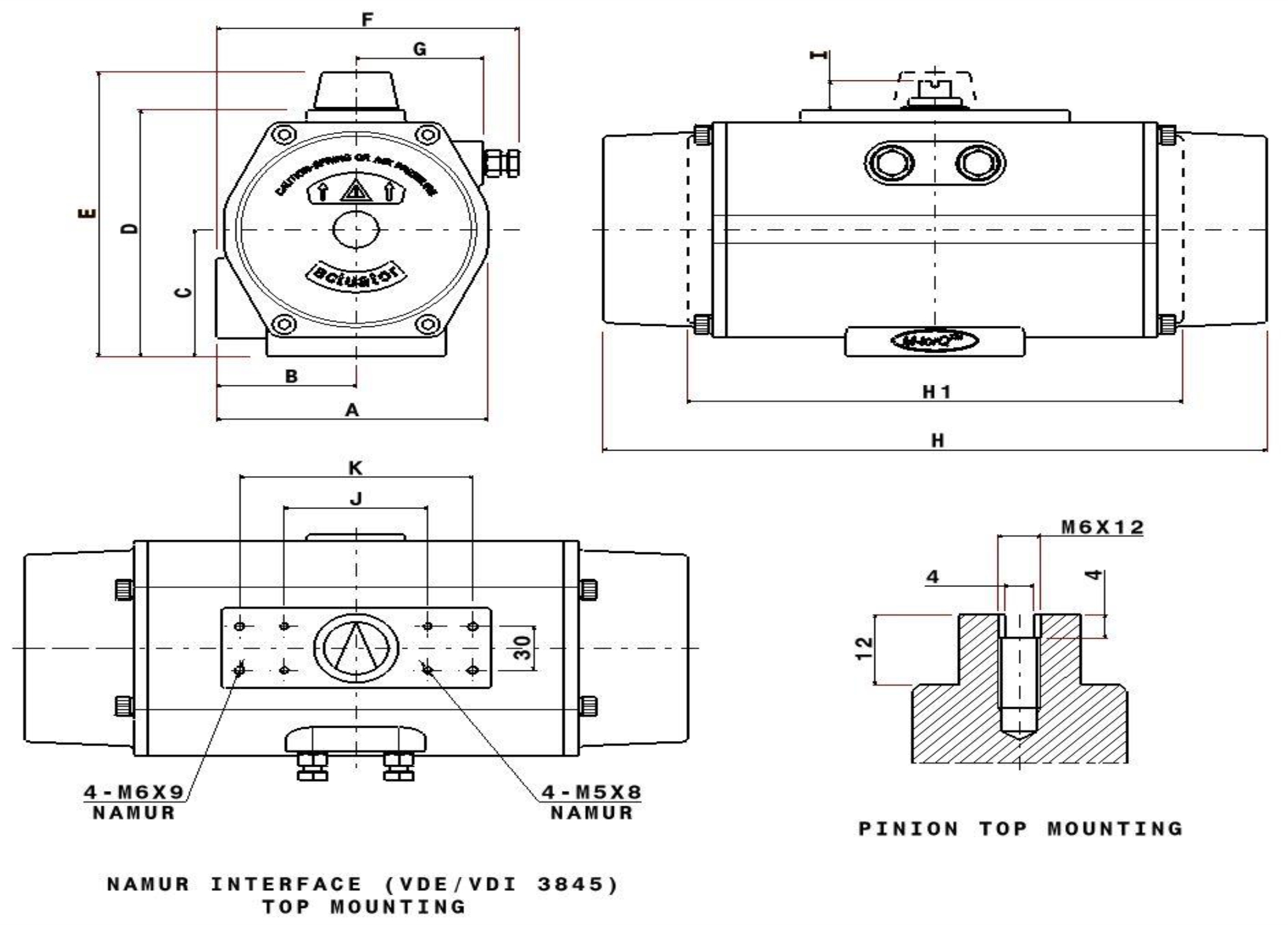

Dimensions- SR and DA Actuators

Diagrams

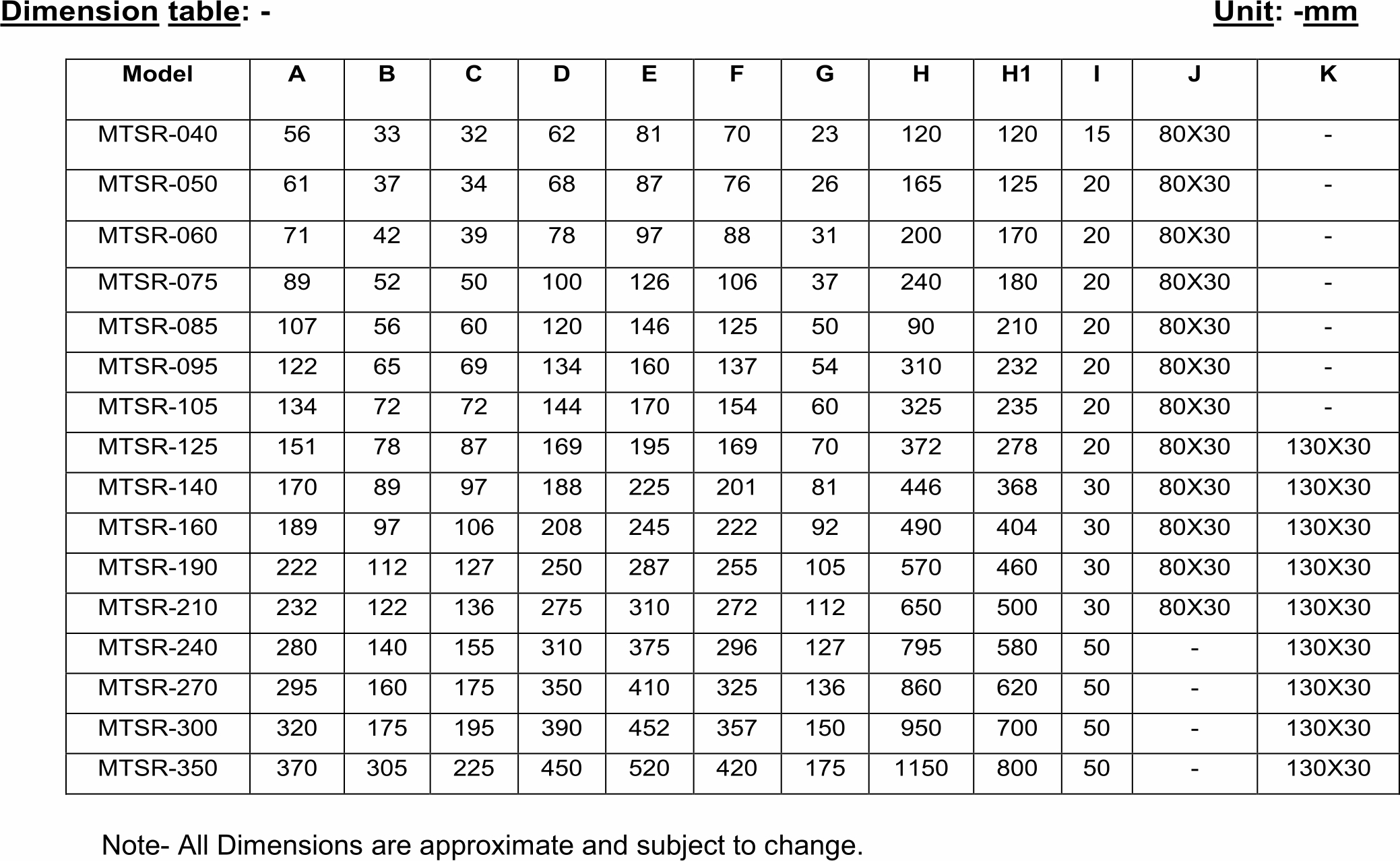

Dimension Table

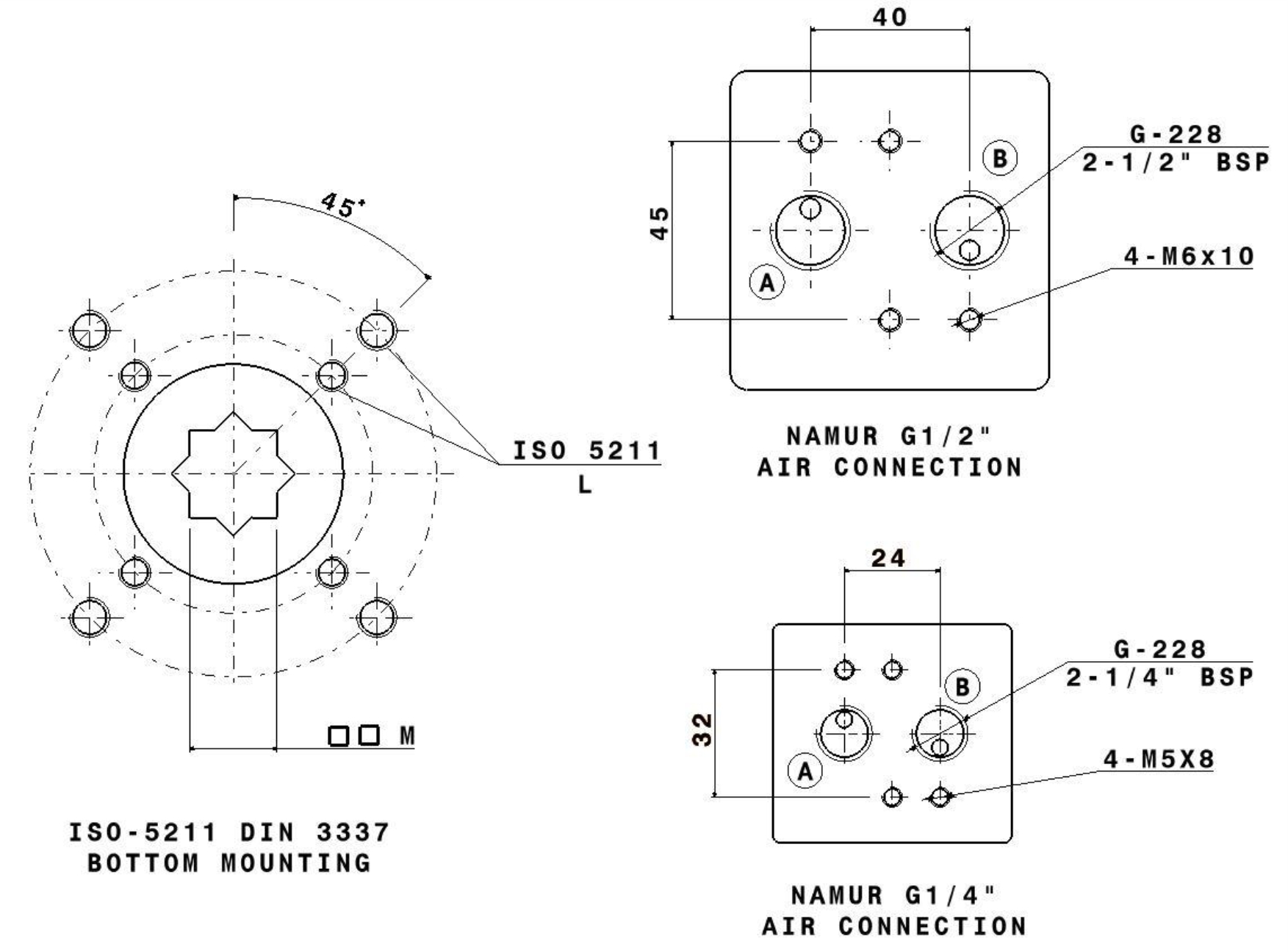

Mountings and Connections-SR and DA Actuators

Diagrams
Dimension Table
