M-torQ Controls India Manufactures Manual Override gearboxes series in Cast iron as per customer’s requirement and having torque load of 100 NM to 35000 NM. We are closely related to Oil, Gas sector and chemical industries. We had designed and manufactured gearboxes as per ISO 9001:2015 standards. We are also following ASME standards/BS standards/ISO standards depending upon the work environment onshore and offshore.

Features :

• Cast Iron body .
• Series of models up to 35000 Nm torque.
• SGI500/7 worm wheel & EN8 worm.
• Declutachable hand wheel.
• Mounting flanges conforming to ISO5211.
• Declutachable drive bush.
• Hand wheel will be provided as per customers’ requirements in Mild Steel (IS 2062 GRADE -B Grade.) and Fabricated. (MS grade with Epoxy painted).
• Epoxy painting /Powder coating as per customer’s requirement.
• Material identification for traceability.
• Stroke 0° to 90° ±5° .
• Smooth and easy Clutch and Declutch mechanism.

Specification :

• IP67 Certifications
• Lubrication used SERVO GEM AP2/AP3.

Options :

• Locking arrangement.
• High temperature variant up to +260°c.
• Low temperature variant up to -50°c .

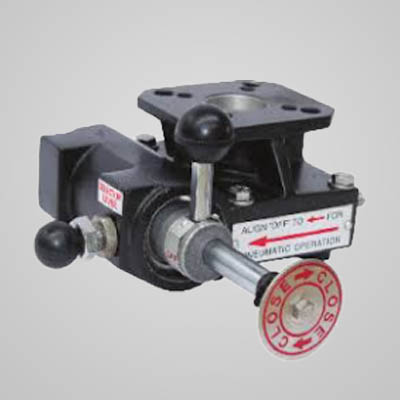

M-torQ MTGOR series Manual Override (MOR) -:

M-torQ Manual Override gear operator is designed for use on butterfly valves, ball valves, and plug valves that utilize high pressure pneumatic actuators for operation. The Manual Override gear box is a de-clutchable operator for manually overriding the actuator.
Manual valve actuators do not require an outside power source to move a valve to a desired position. Instead, they use a handwheel, chainwheel, lever, or declutchable mechanism to drive a series of gears whose ratio results in a higher output torque compared to the input (manual) torque
M-torQ can offer Manual override in Cast Iron and AL housing as per customers need.
These MTGOR units are our smallest in the M-torQ range with an output torque rating of …Nm, however for larger applications our range covers output torques up to 35000Nm.

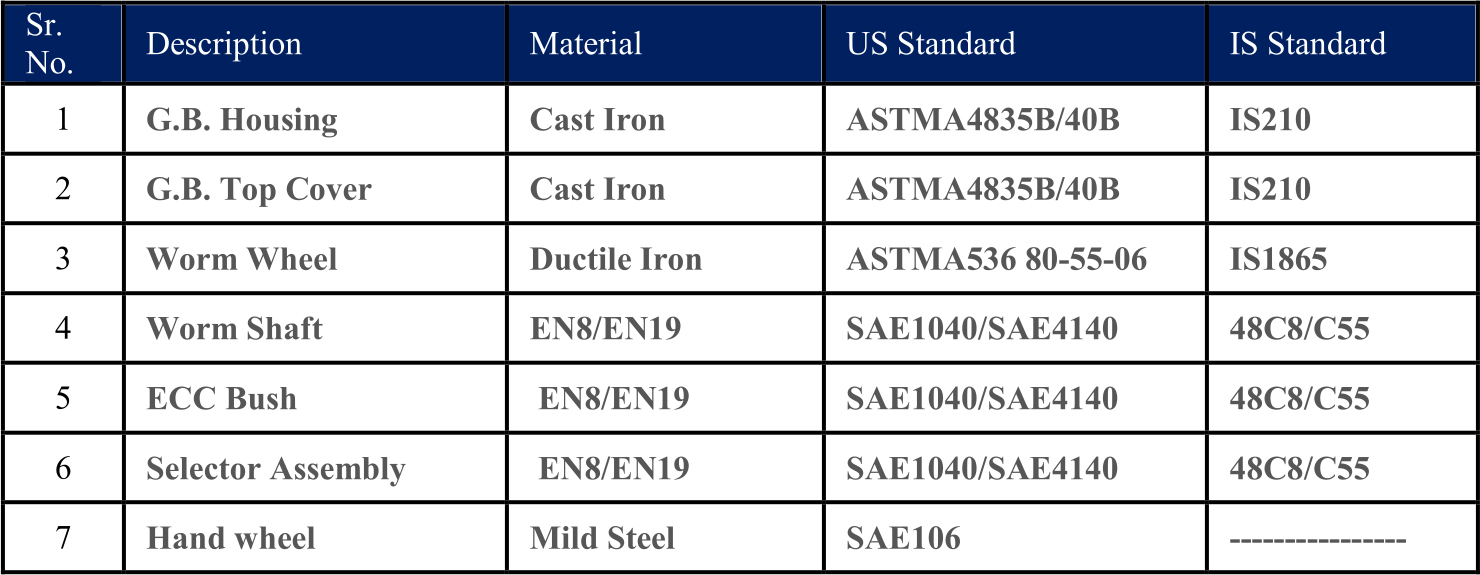

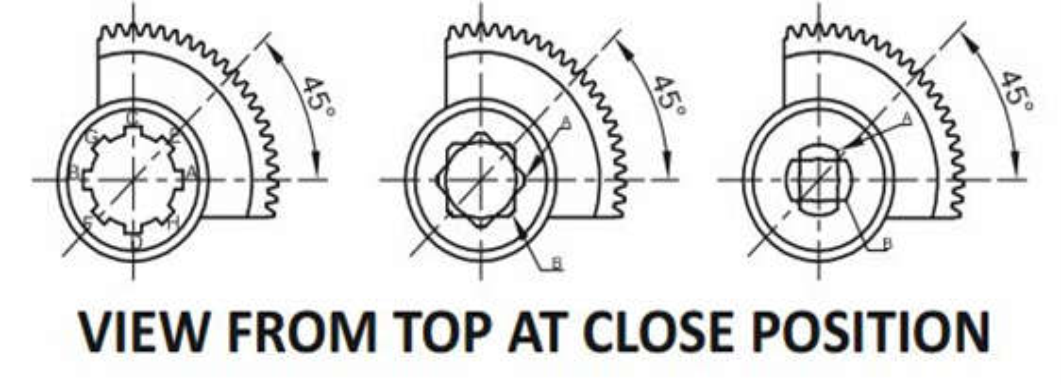

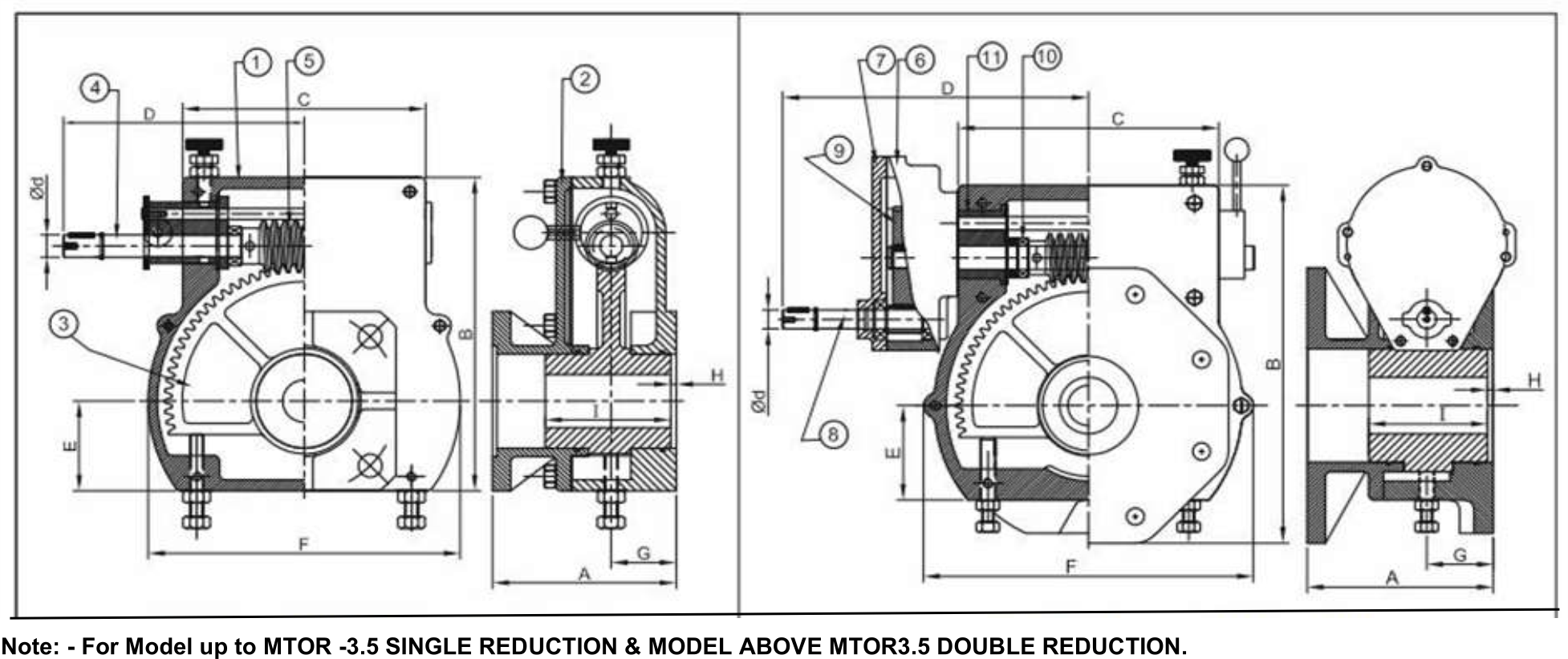

M-torQ Product Diagram
